Compact UVC LED Water Treatment Module for commercial uv water treatment systems
Product Description

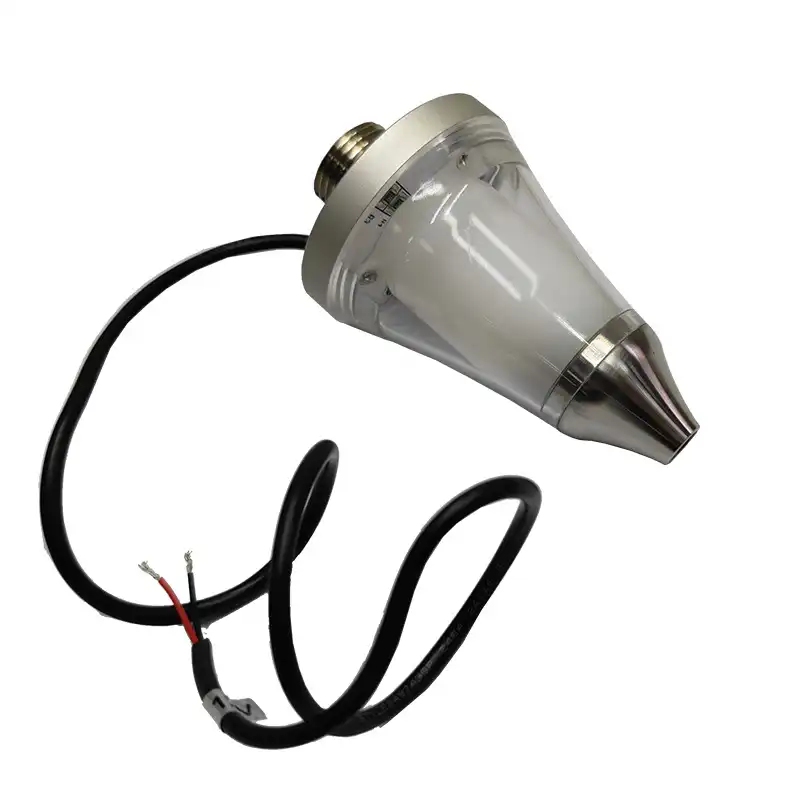

UVC-SW01 commercial uv water treatment systems is specially designed for equipment manufacturers and B2B buyers who need to integrate a UV water disinfection component in their point-of-use water purifier systems. This module can be integrated as a part of compact commercial UV water treatment systems with low-flow water sterilization capability and UVC LED technology.
This module uses 270-280nm UVC wavelength that is typically used for germicidal ultraviolet water disinfection. Radiation flux more than 90mW, and the sterilizing rate is ≥99.9% for bacterium coli at 2L/min flow. Therefore, this module is appropriate for low-flow sterilization application, compact water purifier equipment, dispenser water paths, small water sterilization unit, and OEM UV water treatment system design.
The electrical specification of this module is 12V voltage, 340mA input current, and 4W input power. Comparing to conventional mercury lamp systems, this UVC LED module is compact and easy to integrate in compact devices. This is not an industrial reactor, but a small component that can be used for compact commercial UV water treatment systems and customized water purification equipment.

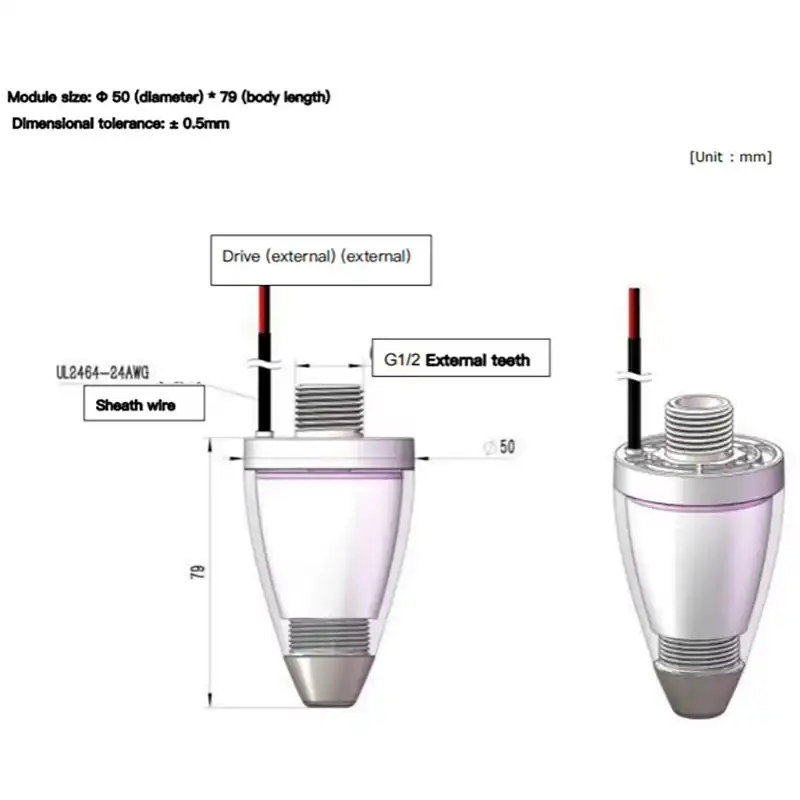

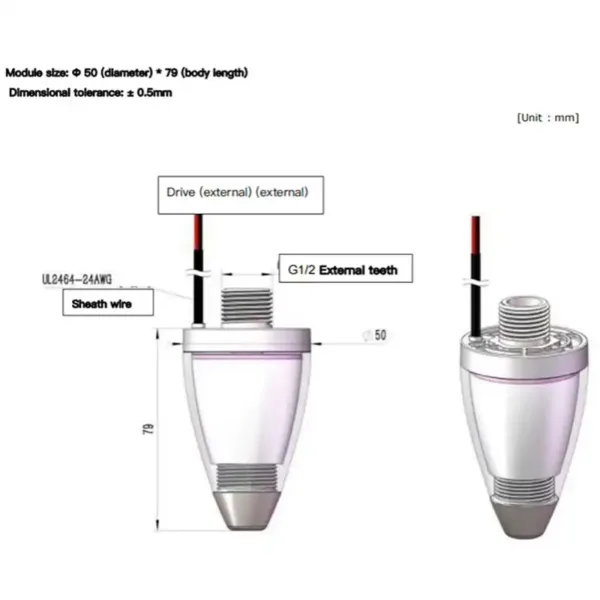

The water inlet interface of this module uses G1/2 external thread. The applicable flow is 1.0-2.5L, and the applicable water pressure is ≤0.2MPa. The enclosure protection grade of this module is IP60, and its product size is Φ50x79mm with a net weight of 100g. This makes this module appropriate for compact water path design with limited installation space.
The electrical connection of this module uses UL2464#24AWG-2C wire rod, and its terminal is customizable. This makes manufacturers able to integrate this module in different product structures, control boards, wiring layout, and customized water treatment device.
The LED lifespan of this module is ≥10000 hours. The operating temperature range of this module is -25℃ to 40℃, and the storing temperature range is -40℃ to 85℃. This module also meets dielectric strength requirement of DC500V, 1min@10mA, leakage current.
For buyers who are designing compact commercial UV water treatment systems, point-of-use water purifiers, dispenser sterilization modules, small UVC water disinfection units, or OEM UV water treatment system, this UVC-SW01 can offer a compact 270-280nm UVC LED solution with 12V input voltage, 4W power, ≥90mW radiation flux, G1/2 external thread, and customizable terminal.
UV disinfection efficiency is affected by water quality, flow rate, exposure time, UV dose, and equipment design. If the source water has particle, sediment, or high turbidity, proper pre-filtration should be considered for UV disinfection.
Specifications
Model NO.: UVC-SW01 commercial uv water treatment systems
Water Inlet Interface: G1/2 external thread
Voltage: 12V
Radiation Flux: ≥90mW
Wavelength: 270-280nm
Sterilizing Rate: ≥99.9% bacterium coli at 2L/min flow
Input Current: 340mA
Input Power: 4W
Enclosure Protection Grade: IP60
Applicable Water Pressure: ≤0.2MPa
Wire Rod: UL2464#24AWG-2C
Terminal: Customizable
LED Lifespan: ≥10000 hours
Dielectric Strength: DC500V, 1min@10mA, leakage current
Size: Φ50x79mm
Net Weight: 100g
Applicable Flow: 1.0-2.5L
Working Temperature: -25℃-40℃
Storage Temperature: -40℃-85℃
FAQ
1. What is the UVC-SW01 used for?
The UVC-SW01 is used as a compact UVC LED water disinfection module for point-of-use water purifiers, small water treatment devices, and compact commercial UV water treatment systems.
2. Is this a full commercial UV water treatment system?
No. This product is a compact UVC LED module. It can be integrated in commercial UV water treatment systems or small water purification equipment, but it is not a full commercial reactor.
3. What wavelength does this module use?
The module uses a 270-280nm UVC wavelength.
4. What is the radiation flux?
The radiation flux is ≥90mW.
5. What is the sterilizing rate?
The sterilizing rate is ≥99.9% for bacterium coli at 2L/min flow.
6. What voltage does it use?
The module uses 12V input voltage.
7. What is the input power?
The input power is 4W.
8. What is the applicable flow?
The applicable flow is 1.0-2.5L.
9. What is the water inlet interface?
The water inlet interface is G1/2 external thread.
10. What is the applicable water pressure?
The applicable water pressure is ≤0.2MPa.
11. Is the terminal fixed or customizable?
The terminal is customizable.
12. What is the LED lifespan?
The LED lifespan is ≥10000 hours.
13. What is the enclosure protection grade?
The enclosure protection grade is IP60.
14. Does UV disinfection replace filtration?
No. UV disinfection is mainly used for microbial control. If the water contains sediment, particles, or high turbidity, pre-filtration should be used for UV treatment.
