Custom ZWB1 Filter for UV Optical Systems 310nm

 zwb1 filter UG11 UV bandpass glass for 310nm 10-300mm

Product Description

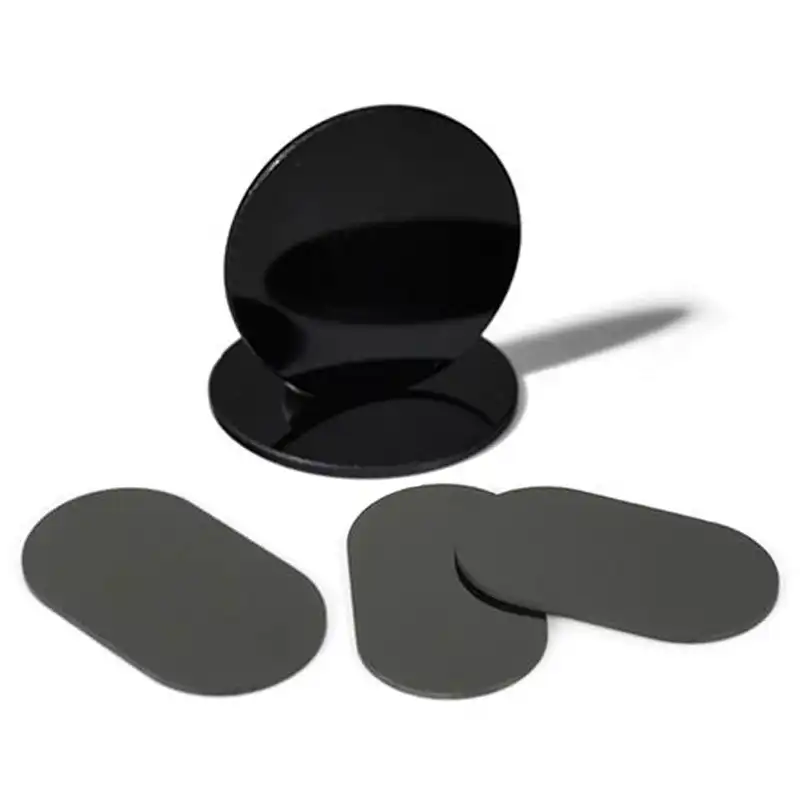

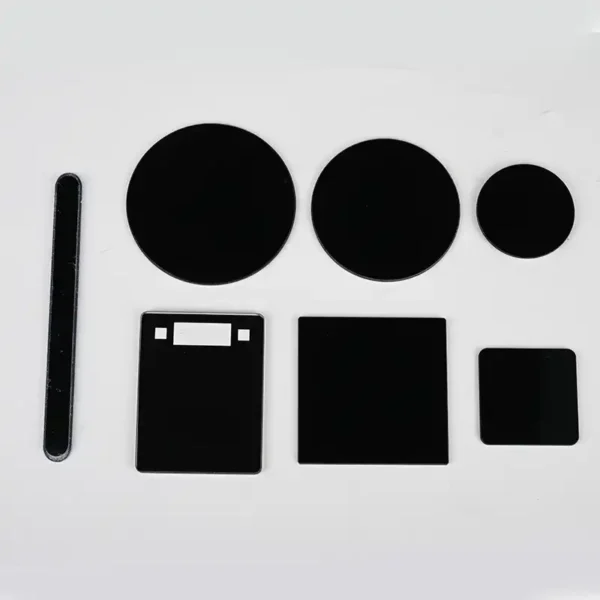

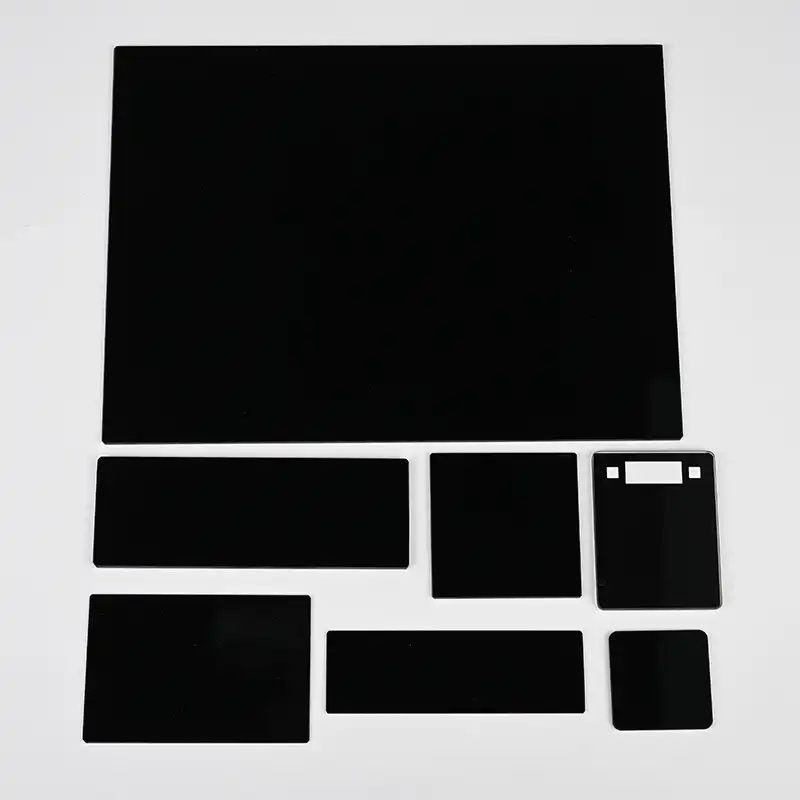

Custom ZWB1 Filter for UV Optical Systems is an optical part made for UV equipment, lab instrument, UV lamp, detector, or other optical system requiring a UV bandpass filter element. The material of the optical part is K9 glass or optical glass that provides users with a reliable base for using in UV applications.

This optical part is available in diameter from 10mm to 300mm, and customized diameter may be available according to customer drawing or installation requirement. Flexible diameter range provides the ability to use the filter in optical module, UV lighting system, inspection device, sensor assembly, or customized optical structure.

For optical systems that require stable optical assembly, the ZWB1 filter is manufactured with the precise tolerance requirement. It features ±0.1 diameter tolerance, ±1% focal length tolerance, ±0.01 center thickness tolerance, and 1/4 flatness. These specifications allow customers to match the filter with various optical housing, instrument, or mechanical design.

The transparent aperture is more than 98% that provides a wide optical area for UV applications. Surface quality options include 60/40 and 40/20 and allow customers to select the proper surface quality level according to inspection standard, system requirement, and budget.

Coating can be made according to customer’s request. Depending on the final usage, this ZWB1 filter can be used as a UV bandpass filter, UV pass filter, black glass optical filter, or customized optical glass element for UV optical system.

For customers who are interested in purchasing a custom ZWB1 filter that is made of K9 glass or optical glass, has the tolerance requirement, custom diameter, high transparent aperture, and coating options, this product will meet their requirement for UV optical integration and OEM production.

Specifications

Item Name: ZWB UV bandpass filter
Material: K9 glass / optical glass
Surface: 60/40, 40/20
Flatness: 1/4
Diameter Tolerance: ±0.1
Focal Length Tolerance: ±1%
Center Thickness Tolerance: ±0.01
Transparent Aperture: >98%
Diameter: 10-300mm or customized
Coating: As requirements

FAQ

1. What is a ZWB1 filter used for?

A ZWB1 filter is used in UV optical systems, UV lamps, detection equipment, laboratory instruments, sensor assemblies, and customized optical projects that require a UV bandpass filter component.

2. What material is available for this ZWB1 filter?

This product can be made from K9 glass or optical glass according to the required optical application.

3. Can the filter diameter be customized?

Yes. The available diameter range is 10-300mm, and customized dimensions can be produced according to customer drawings or project needs.

4. What surface quality options can be supplied?

The available surface quality options are 60/40 and 40/20.

5. What is the transparent aperture?

The transparent aperture is more than 98%, giving the filter a large usable optical area for UV optical applications.

6. Can the coating be customized?

Yes. Coating can be made according to customer requirements for different UV systems, optical structures, and industrial applications.

7. Is this ZWB1 filter suitable for OEM optical projects?

Yes. With custom diameter, optical glass material, precision tolerances, and coating options, this ZWB1 filter is suitable for OEM optical integration and custom UV equipment projects.
