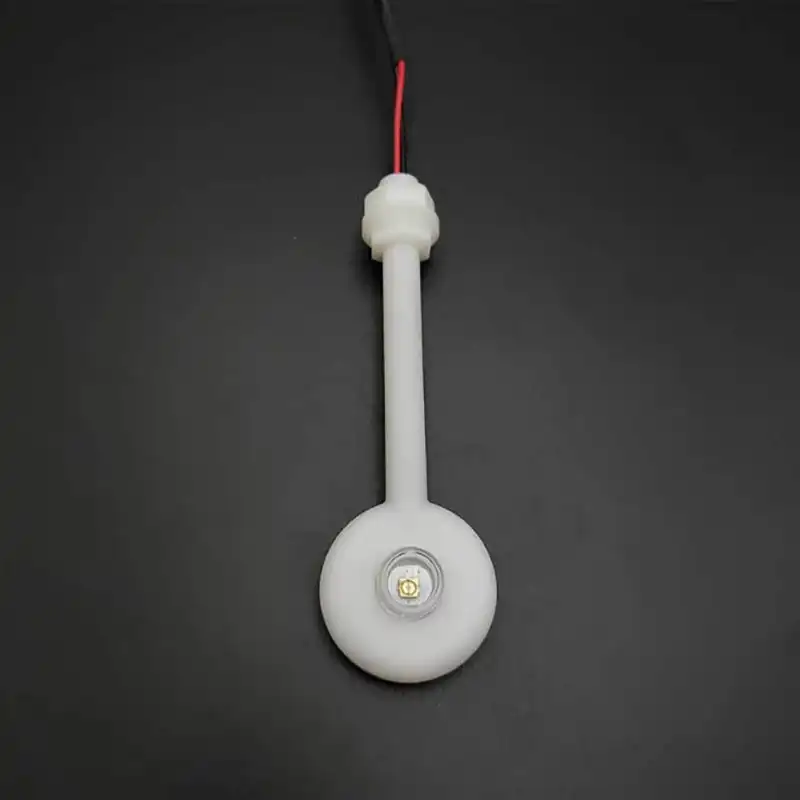

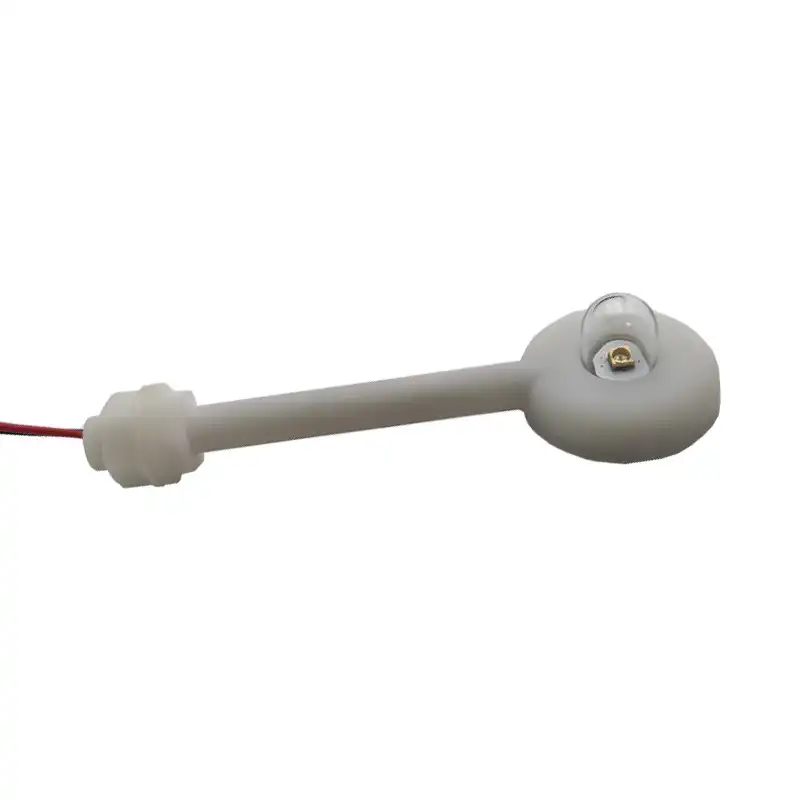

Best uv sterilization water uvc led module for static water 6mW
| Model NO. | UVC-D01 | uv sterilization water |

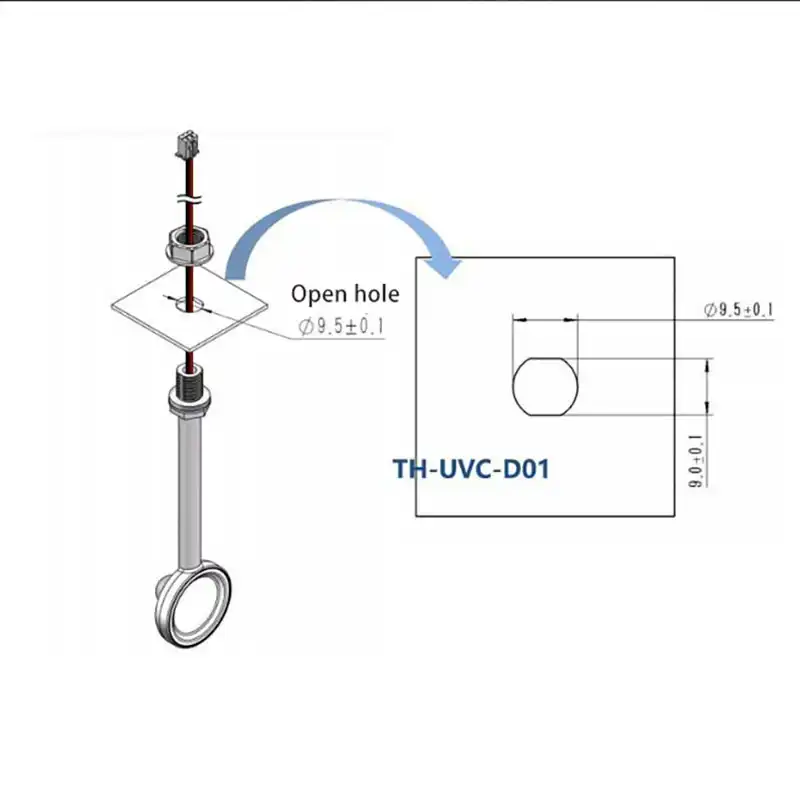

| Open hole | 9.5±0.1mm | Smooth circular hole |
| Voltage | DC12V or DC24V | Customized |
| Radiant Power | 4-6mW(Max 50mW) | According LED |
| Wavelength | 260-280nm | |
| Current | 20-40ma(Max150ma) | According LED |
| Power | 0.2-0.4W(Max 1W) | According LED |
| Waterproof | IP68 | Light-emitting surface IP68 |
| Wire length | 500±10mm | Customized |
| Connector | XH2.54, white | Customized |
| LED Lifespan | 10000-25000hours | According LED |
| Insulation voltage | DC500V,1min@10ma, Leakage current | |

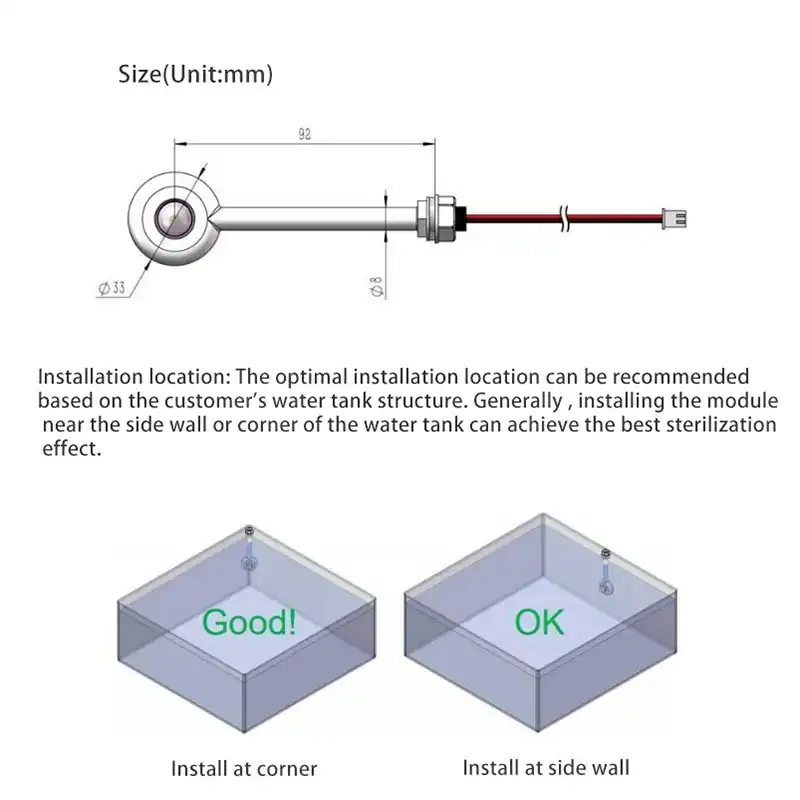

| Size | Φ33x92mm | |
| Net weight | 20gg | |
| Working temperature | -25℃-40℃ | |
| Storage temperature | -40℃-85℃ | |
Application:
Water purifiers/ice makers/air humidifiers/air purifiers/aroma diffusers/pet water fountains/dishwashers…
UVC Light for Water Disinfection
UVC light is one of the most effective and eco-friendly technologies for water purification. Operating at wavelengths between 254–280 nm, UVC light destroys the DNA and RNA of bacteria, viruses, and other harmful microorganisms, preventing them from reproducing. Unlike chemical treatments such as chlorine, UVC disinfection leaves no harmful residues or odors, making it ideal for drinking water, aquaculture, and industrial applications.
Modern UVC LED modules are compact, energy-efficient, and mercury-free, making them suitable for both residential and portable water purification systems. They can be integrated into faucets, water dispensers, and pipeline systems to provide instant sterilization.
Using UVC light for water not only ensures safe, clean drinking water but also reduces dependence on chemicals, minimizes maintenance, and supports sustainable environmental protection. This advanced technology is rapidly becoming a standard in modern water treatment systems worldwide.
