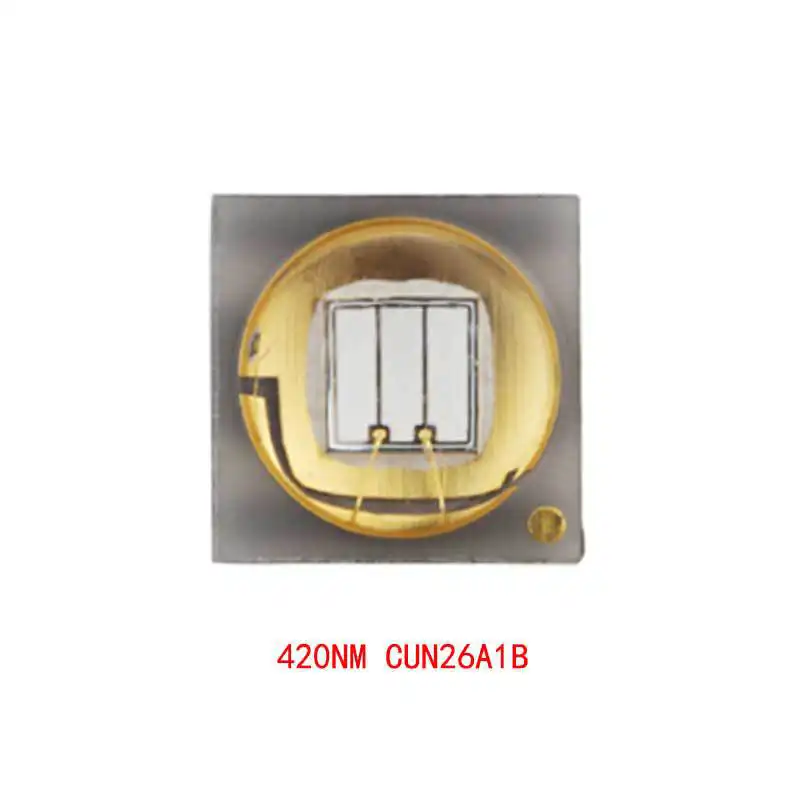

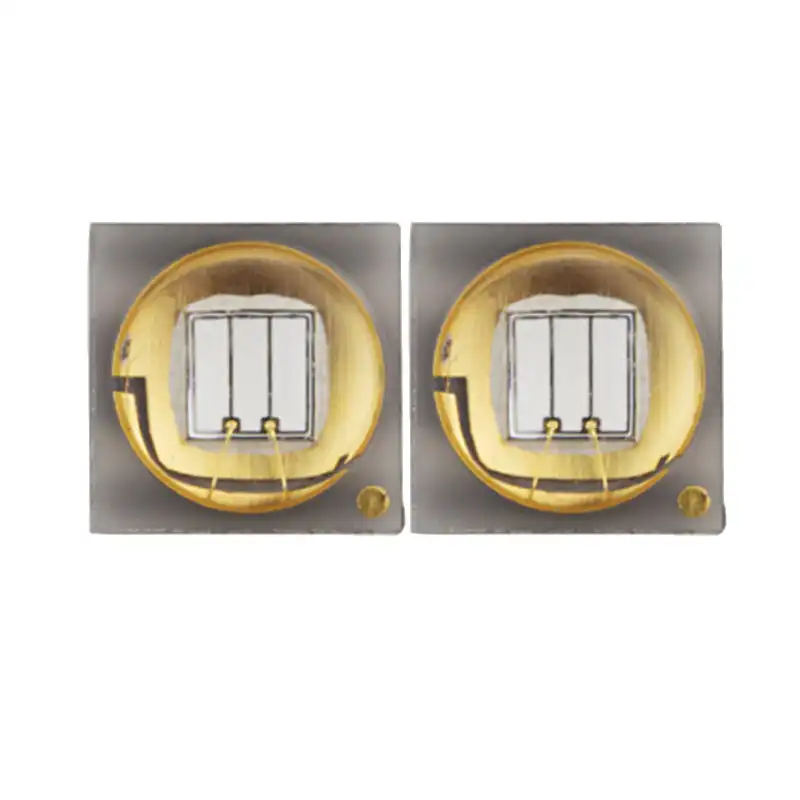

best uv led bead Seoul Viosys 420nm CUN26A1B

uv led bead Seoul Viosys 420nm CUN26A1B ultraviolet led emitters

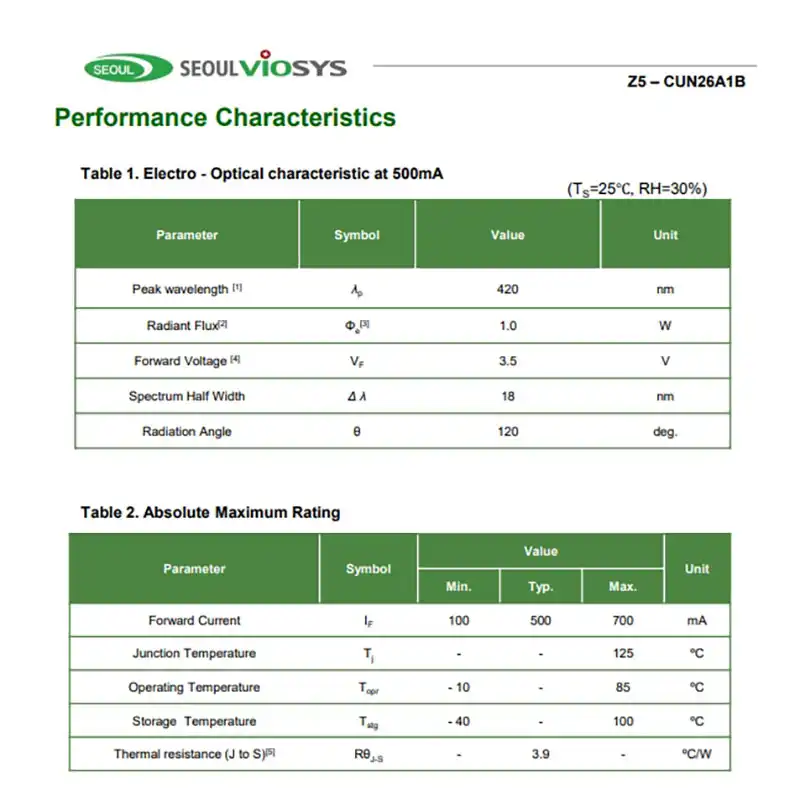

Specification:

Model NO.: CUN26A1B

1. Wavelength: 420nm

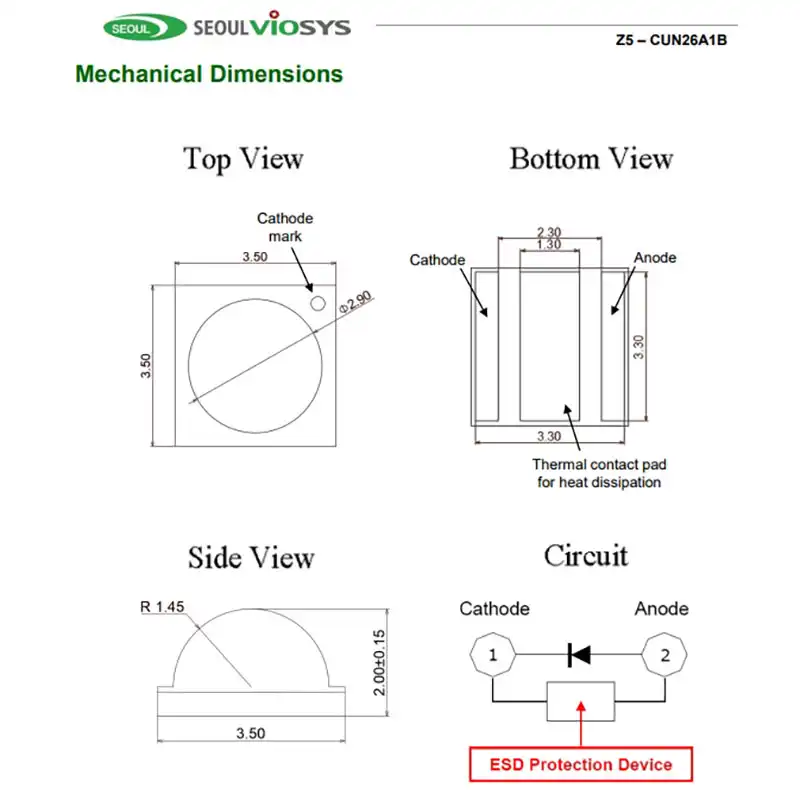

2. Size:3.5×3.5×2.0mm
3. Voltage:3.5V
4. Current:500ma
5. Radiant Power:1000mW
6. View angle:120 degree

Description:

• High power UV LED series are designed for high current operation and high power output applications.
• It incorporates with the state of the art SMD design and low thermal resistant material.
• Z5 NUV LED is an ideal UV light source for curing, printing, and detecting applications

Features and Benefits

• High power output
• Designed for high current operation
• Low thermal resistance
• SMT type
• Lead Free product
• RoHS compliant

Key applications:

• UV Curing
• Printing
• Coating
• Adhesive
• Counterfeit Detection/ Security
• UV Torch
• Fluorescence Photography
• Dental Curing
• Crime Inspection
• Oil leak Detection
