60W UV Curing Light 365nm potable ultraviolet gut for curing,coating and industrial applications.
Product Description

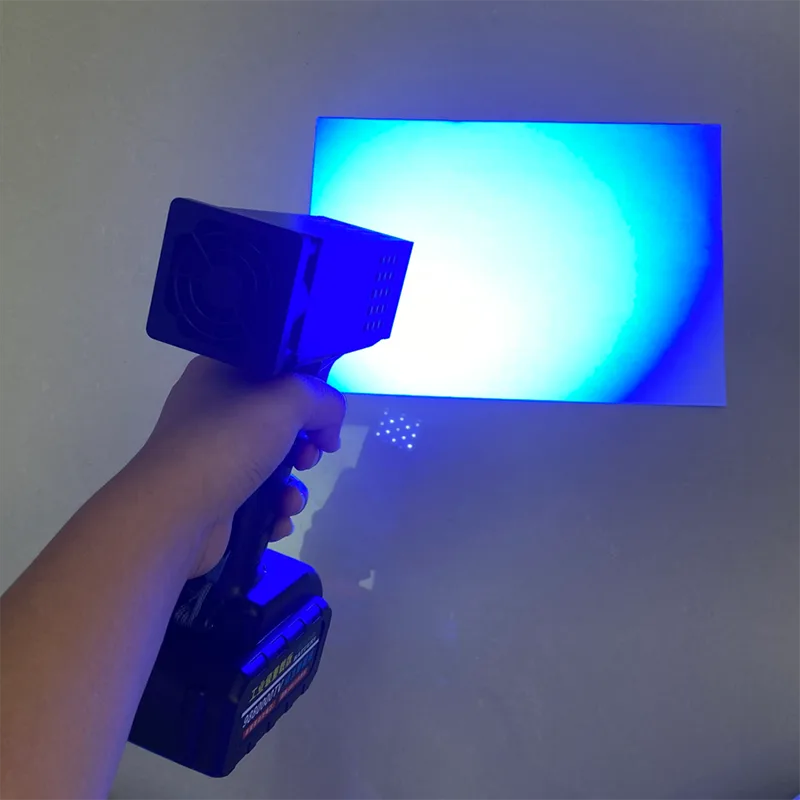

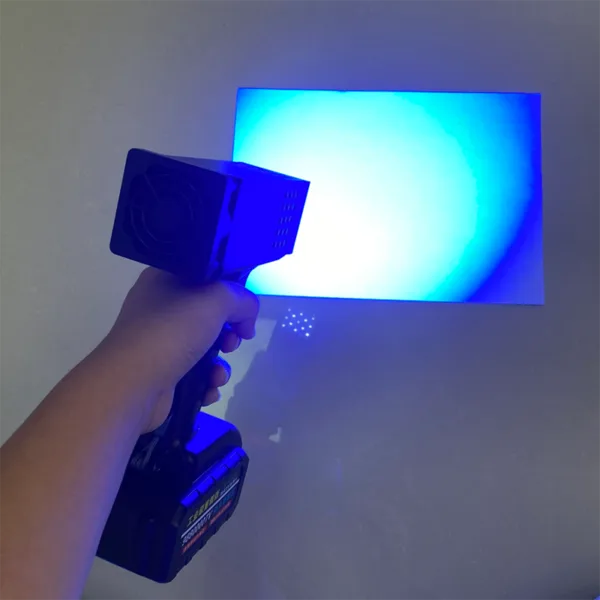

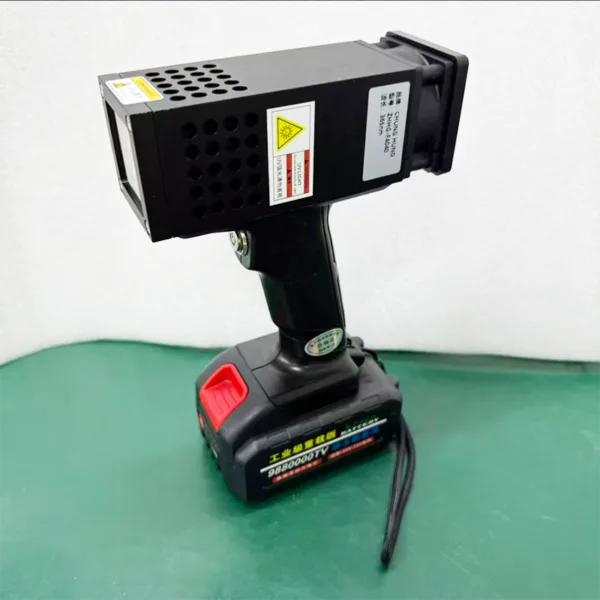

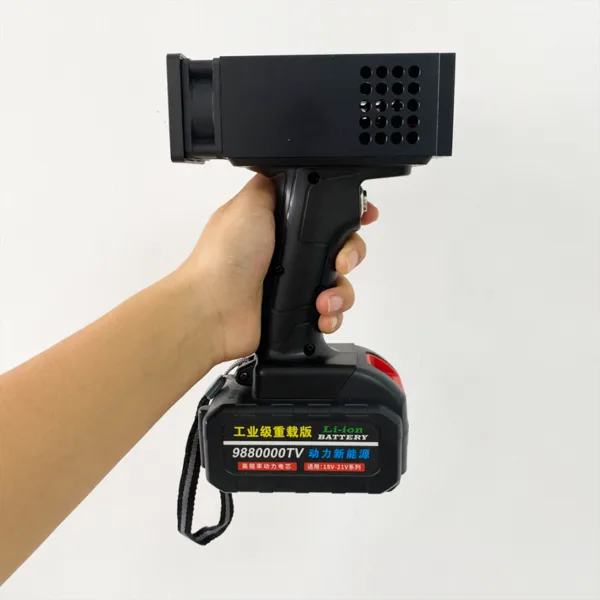

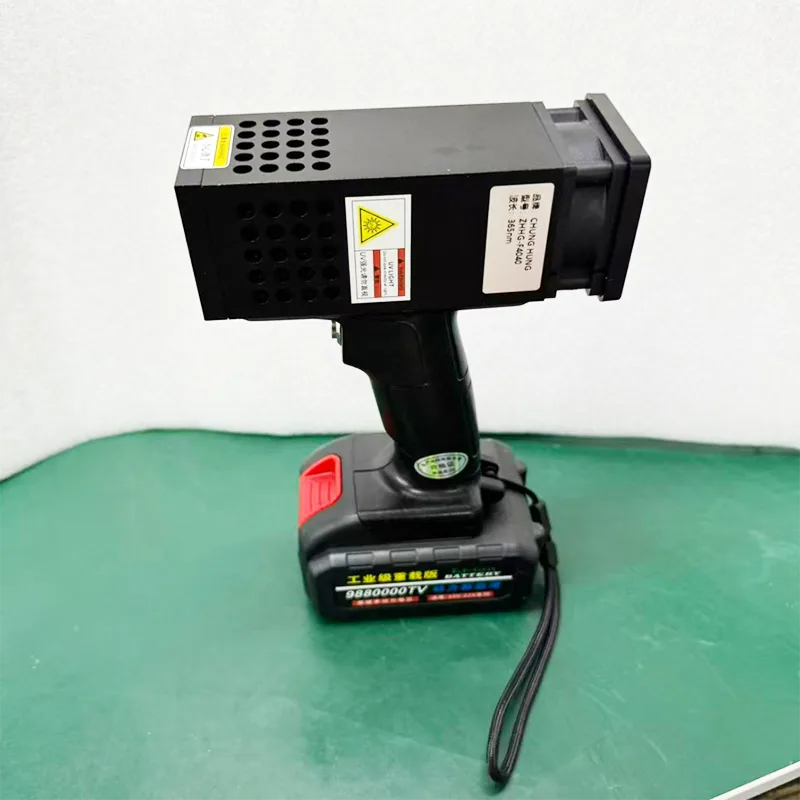

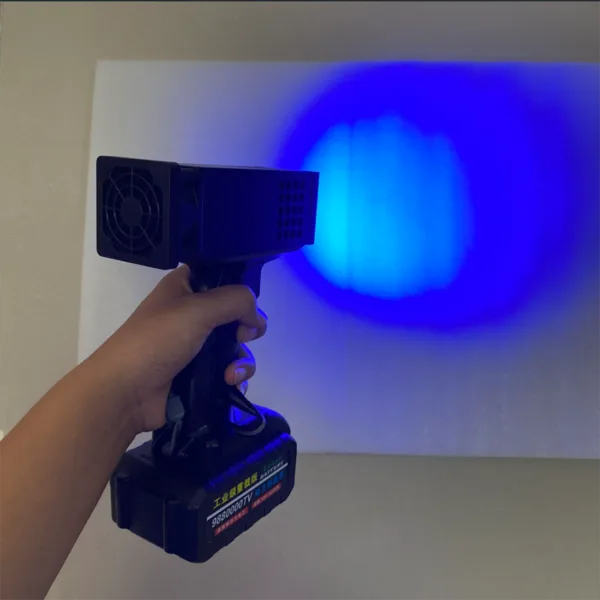

The yoyo-uvgun365-60W-1 is a 365nm 60W UV Curing Light designed for industrial curing, field repair, quality inspection, and professional detection applications. As a handheld UV LED hand lamp, it gives users a portable solution for activating UV-sensitive adhesives, resins, inks, and coatings without relying on a fixed curing station.
This UV Curing Light uses a high-power UV LED light source with 60W power, 2.85A current, and 365nm wavelength. The rated irradiance reaches 6000mW/cm², while the standard irradiance area is 40 x 40mm. These specifications make the unit suitable for focused curing work where stable UVA output and practical handling are required.
For process planning, the lamp provides measurable curing performance at different distances. At 10cm, the curing diameter is approximately ø16cm, with minimum irradiance of 100mW/cm² and center irradiance of 500mW/cm². At 56cm, the curing diameter is approximately ø60cm, with minimum irradiance of 14mW/cm² and center irradiance of 20mW/cm². This data helps users choose a suitable working distance based on the curing area and intensity requirement.

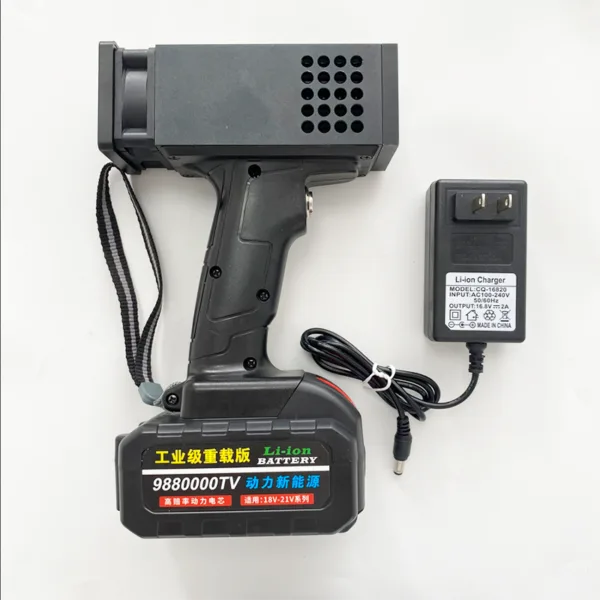

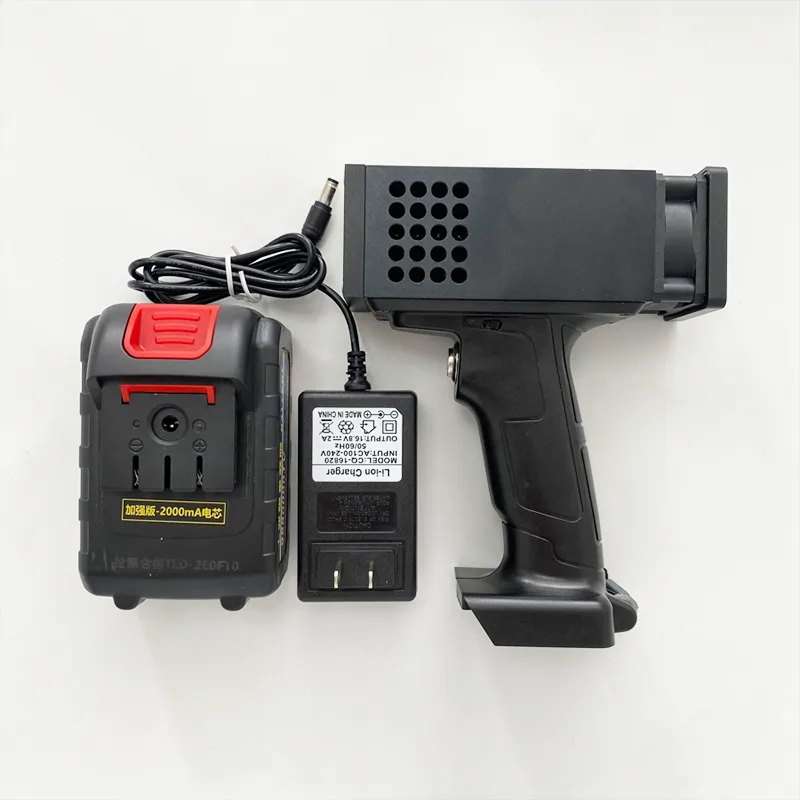

The rechargeable battery system improves working flexibility. The lamp uses a 21V Li-ion battery with 4000mA capacity and supports AC100-240V 50-60Hz charging. Charging time is about 2.5 hours. Each package includes one UV gun, one charger, and one battery, making the UV Curing Light ready for professional use after charging.

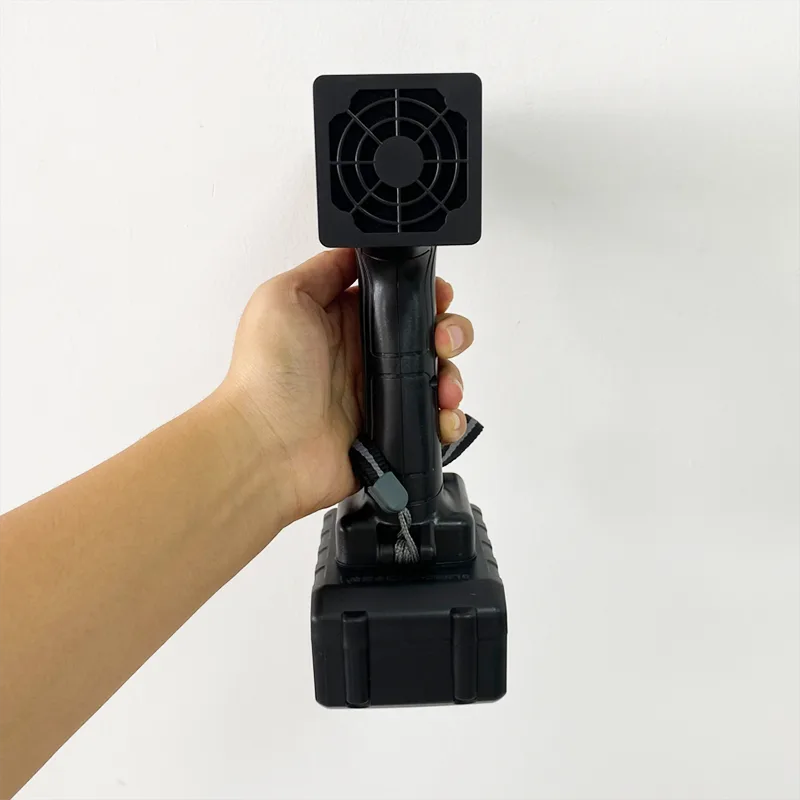

To support continuous operation, the unit uses fan cooling. The working temperature range is -10 °C to +40 °C, and the high-power UV LED source has a lifespan of more than 20,000 hours. The product size is 230 x 145 x 50mm, with a gross weight of 1.8kg, offering a balance of power, portability, and durability.
Beyond curing, this 365nm UV Curing Light can also support fluorescence inspection, non-destructive testing with fluorescent materials, oil leak detection, coolant leak detection, counterfeit document checking, gemstone identification, mineral inspection, and laboratory UVA exposure. For buyers who need a portable UV Curing Light with 60W power, 365nm wavelength, strong irradiance, fan cooling, and battery-powered operation, the yoyo-uvgun365-60W-1 is a practical option for industrial curing and inspection workflows.
Specifications
Model NO.: yoyo-uvgun365-60W-1
Brand: yoyo-uv
Product Type: Hand Lamp
Light Source: High power UV LED
Power: 60W
Charging Voltage: AC100-240V 50-60Hz
Battery Type: Li-ion
Battery Voltage: 21V
Current: 2.85A
Irradiance Area: 40 x 40mm
Irradiance: 6000mW/cm²
Charging Time: 2.5H
Wavelength: 365nm
Battery Capacity: 4000mA
Cooling Method: Fan
Lifespan: >20,000 hours
Size: 230 x 145 x 50mm
Gross Weight: 1.8KG
Warranty: 2 years
Operating Temperature: -10 °C to +40 °C
Package Includes: 1 x UV gun, 1 x charger, 1 x battery
Curing Diameter at 56cm: ø60cm
Minimum Irradiance at 56cm: 14mW/cm²
Center Irradiance at 56cm: 20mW/cm²
Curing Diameter at 10cm: ø16cm
Minimum Irradiance at 10cm: 100mW/cm²
Center Irradiance at 10cm: 500mW/cm²
FAQ
1. What is this UV Curing Light used for?
This UV Curing Light is used for UV adhesive curing, UV glue curing, resin curing, ink curing, coating curing, field repair, NDT inspection, fluorescence checking, and leak detection.
2. What wavelength does this model use?
This model uses a 365nm UVA wavelength, which is commonly used for UV curing and fluorescence inspection applications.
3. What is the rated irradiance?
The rated irradiance is 6000mW/cm², with a 40 x 40mm irradiance area.
4. What is the curing performance at 10cm?
At 10cm, the curing diameter is approximately ø16cm. The minimum irradiance is 100mW/cm², and the center irradiance is 500mW/cm².
5. What is the curing performance at 56cm?
At 56cm, the curing diameter is approximately ø60cm. The minimum irradiance is 14mW/cm², and the center irradiance is 20mW/cm².
6. Is this UV Curing Light rechargeable?
Yes. It uses a 21V Li-ion battery with 4000mA capacity. The package includes one battery and one charger.
7. How long does charging take?
Charging time is about 2.5 hours with AC100-240V 50-60Hz charging voltage.
8. Does it have a cooling system?
Yes. This model uses fan cooling to support stable performance during curing and inspection work.
9. What is included in the package?
The package includes 1 x UV gun, 1 x charger, and 1 x battery.
10. Is this model suitable for industrial use?
Yes. With 60W power, 365nm wavelength, 6000mW/cm² irradiance, fan cooling, and portable battery operation, this UV Curing Light is suitable for industrial curing, field repair, and professional inspection applications.
