222nm Far UVC Light 30W Compact Lamp

 far uvc light 222nm 30W

Product Details Description

The yoyouv SBS-222-30W is far uvc light characterized by such features as Φ15 x 331mm dimension, DC24V/220V voltage options, 30W bulb power, 220g net weight, high purity quartz glass casing, 5000μW/cm² UV intensity, -10°C to +50°C ambient operating temperature range, and 4000+ hours bulb lifetime.

This product can be used as the far-UVC lamp source in OEM manufacturers, air purifier producers, HVAC systems, standalone fixtures, cleanroom equipment and controlled disinfection device producers. It cannot be used as the general lighting bulb, UVA blacklight tube, tanning lamp or portable UV product.

The 222nm wavelength is the far-UVC wavelength. The far uvc light can help to reduce microbes with sufficient UV dose and conditions. The final performance is dependent on a lot of parameters like spectral output, lamp position, distance, exposure time, airflow, surface material, microbe, and system design.

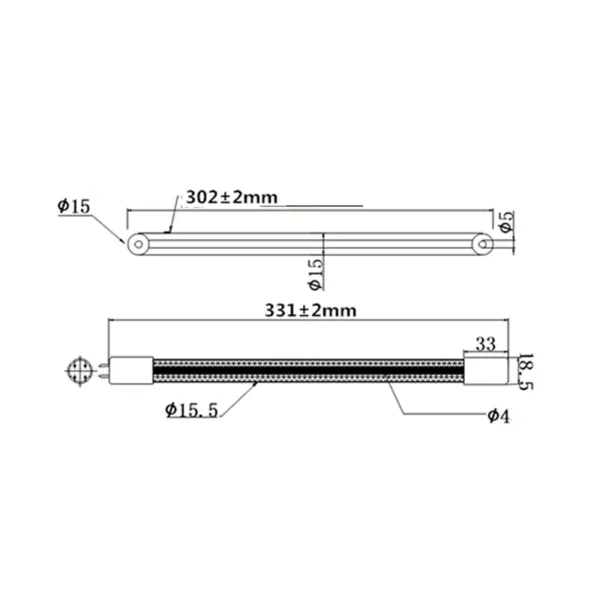

The Φ15 x 331mm is the unique parameter of this lamp model. Compared to other 60W, 100W, or 150W far-UVC lamps, the SBS-222-30W lamp is more efficient for compact systems due to its small dimensions.

For air disinfection equipment, the far uvc light can be integrated in air purifiers, HVAC ducts, enclosed air channels, ceiling devices and small air-treatment modules. Air treatment efficiency depends on airflow rate, chamber geometry, lamp quantity, UV intensity, exposure time, reflectivity and system dose.

For surface disinfection equipment, the SBS-222-30W can be integrated into controlled irradiation fixtures for workstations, tools, public transport interior, cleanroom surfaces and commercial equipment. Surface microbial reduction efficiency depends on distance, irradiation angle, shadowing, surface texture, exposure duration, and microorganism.

The DC24V/220V voltage options can help to create various far-UVC systems. For instance, DC24V voltage can be used in compact electronic assemblies, while 220V can be used for fixture-level devices. The final equipment should include power control, insulation, grounding, thermal management and electrical protection.

The high purity quartz glass housing can contribute to far-UVC lamp production and can be used to place the lamp in OEM assemblies. OEM engineers should pay attention to the lamp holder design, reflector structure, optical window, cooling path, maintenance access and replacement procedure in the design process.

This far uvc light can help to create chemical-free disinfection equipment that does not use liquid disinfectants, residues and secondary pollution. All germicidal or pathogen-reduction claims should be validated on the complete device level in realistic test conditions.

The product can be used in the design of occupied-space systems only if the final fixture is properly filtered, shielded, measured, installed and operated within applicable exposure limits. The open lamp source cannot be considered as the source that is automatically safe for direct human exposure.

The ozone performance should be checked in the final device. The factors like lamp spectrum, filtering, ventilation, enclosure design, operating time and room chemistry can influence ozone level and secondary byproducts.

Do not look directly at the working far uvc light. Try to avoid the unnecessary close exposure during testing, assembly, installation and maintenance. Use UV protective eyewear, shielding, interlocks, warning labels, calibrated UV measuring tools and safe operating procedure in the final device development process.

Specifications

Brand: yoyouv
Model NO.: SBS-222-30W
Dimension: Φ15 x 331mm
Voltage: DC24V/220V
Bulb Power: 30W
Net Weight: 220g
Bulb Casing: High purity quartz glass
Ambient Operating Temperature Range: -10°C to +50°C
UV Intensity: 5000μW/cm²
Bulb Lifetime: 4000+ hours

Features and Benefits

Compact 222nm far uvc light source for OEM equipment
30W bulb power for controlled air and surface disinfection systems
Slim Φ15 x 331mm tube for space-limited fixture designs
DC24V/220V voltage options for flexible integration
High purity quartz glass housing for far-UVC lamp production
5000μW/cm² UV intensity for engineered irradiation systems
4000+ hour bulb lifetime for OEM replacement planning
Suitable for air purifier, HVAC, standalone fixture, and cleanroom equipment integration
Designed for low-ozone system development when properly tested in the final device
Supports chemical-free microbial reduction under validated dose conditions

Key Applications

Air disinfection equipment
Surface disinfection fixtures
Air purifier integration
HVAC disinfection modules
Compact far-UVC standalone fixtures
Cleanroom disinfection equipment
Public transport surface treatment systems
Ceiling-mounted far-UVC devices
OEM 222nm lamp modules
Controlled irradiation chambers

FAQ

What is this far uvc light used for?

This far uvc light is used as 222nm lamp source for air disinfection equipment, surface disinfection fixtures, HVAC systems, air purifiers, standalone devices, cleanrooms, and OEM far-UVC modules.

What is the model number?

The model number is SBS-222-30W.

What is the bulb power?

The bulb power is 30W.

What voltage does the lamp support?

The lamp supports DC24V/220V voltage options.

What is the lamp dimension?

The lamp dimension is Φ15 x 331mm.

What is the UV intensity?

The UV intensity is 5000μW/cm².

What is the bulb lifetime?

The bulb lifetime is 4000+ hours.

What is the bulb casing material?

The bulb casing is high purity quartz glass.

What is the operating temperature range?

The ambient operating temperature range is -10°C to +50°C.

What is the net weight?

The net weight is 220g.

Is this a 222nm far-UVC lamp?

Yes. This product is 222nm far-UVC lamp source for OEM fixture integration and controlled disinfection equipment.

How is this model different from larger 60W or 100W lamps?

This model has a smaller Φ15 x 331mm design and 30W bulb power that make it more suitable for compact equipment.

Can this far uvc light be used in air purifiers?

Yes. It can be used in air purifiers if the final system includes proper airflow design, lamp mounting, optical shielding, ozone testing and safety control.

Can it be used in HVAC systems?

Yes. It can be used in HVAC-related equipment if the final design includes correct lamp placement, airflow control, electrical safety, thermal structure and maintenance access.

Can it be used for surface disinfection?

Yes. It can be used in surface disinfection fixtures. Final performance is dependent on UV dose, distance, exposure time, shadowing, surface material and microorganism.

Can this lamp be used while people are present?

It can be used in occupied-space systems if the final fixture is properly filtered, shielded, installed, measured and operated within applicable exposure limits. An open lamp source cannot be used as uncontrolled UV exposure.

Is this lamp ozone-free?

The lamp can be used in low-ozone system designs, but ozone level must be tested in the final device. Spectrum, filtering, ventilation, enclosure design and operating time can influence actual ozone output.

Is it safe to look directly at this lamp?

No. Do not look directly at the operating far uvc light. Use UV protective eyewear, shielding, interlocks, warning labels and safe operating procedures.

What should OEM buyers verify before using this lamp?

OEM buyers should verify spectral output, optical filtering, UV intensity, exposure limits, ozone level, electrical safety, thermal design, installation height, airflow or surface exposure design, lamp holder compatibility and regulatory requirements for the final equipment.
