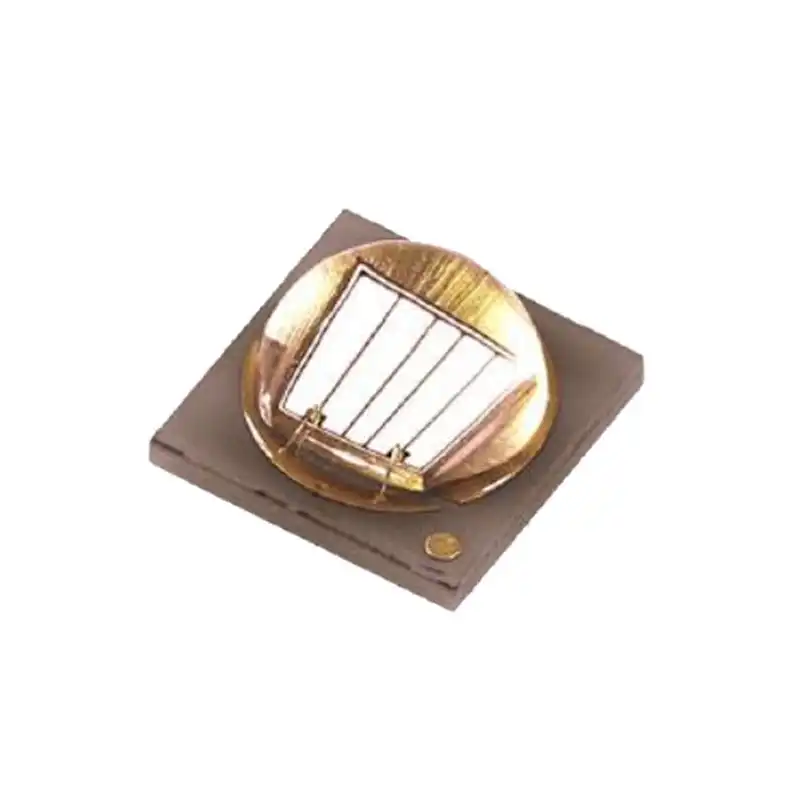

best uv led chip 405nm Seoul Viosys CUN06A1G

uv led chip 405nm Seoul Viosys CUN06A1G uv modules customizable

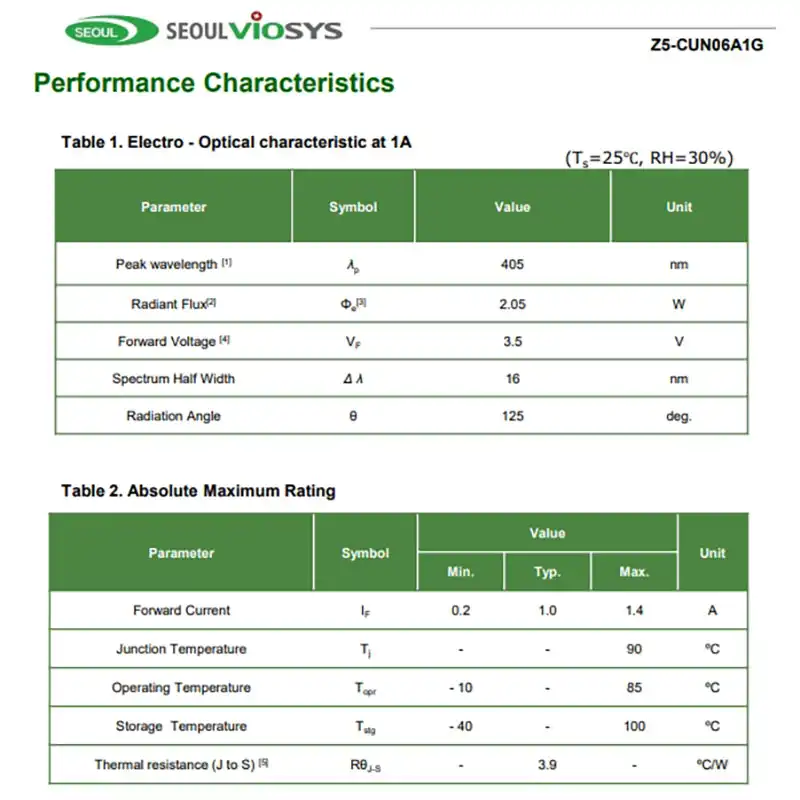

Specification:

Model NO.: CUN06A1G

1. Wavelength: 405nm

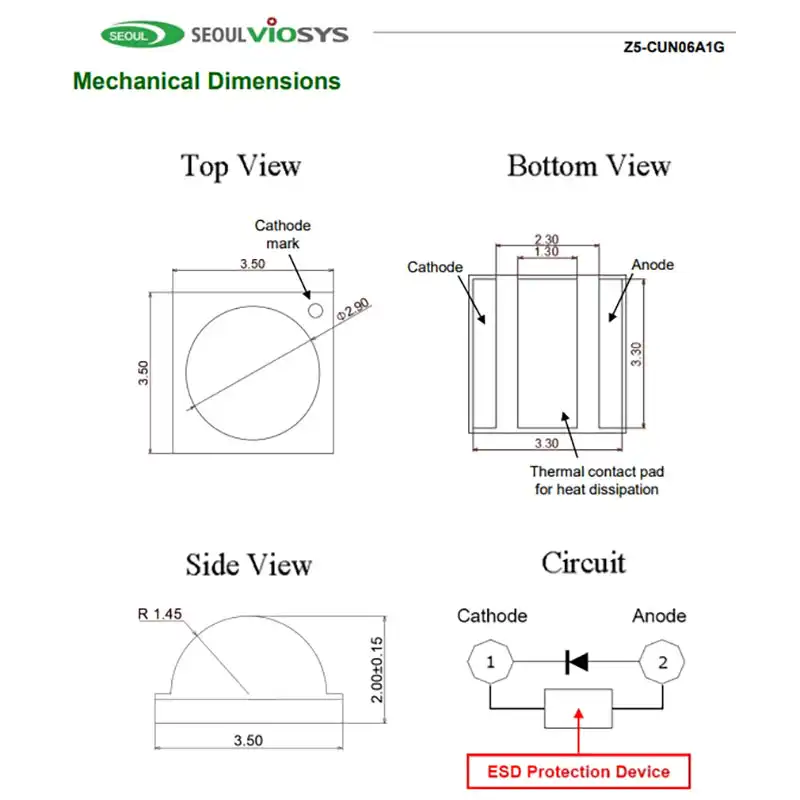

2. Size:3.5×3.5×2.0mm
3. Voltage:3.5V
4. Current:1000ma
5. Radiant Power:2050mW
6. View angle:120 degree

Description:

• High power UV LED series are designed for high current operation and high power output applications.
• It incorporates with the state of the art SMD design.
• Z5 NUV LED is an ideal UV light source for curing, printing, and detecting applications

Features and Benefits

• High power output
• Designed for high current operation
• SMT type
• Lead Free product
• RoHS compliant

Key applications:

• UV Curing
• Printing
• Coating
• Adhesive
• Counterfeit Detection/ Security
• UV Torch
• Fluorescence Photography
• Dental Curing
• Crime Inspection
• Oil leak Detection
