Best uv gun 365nm 60W

Best uv gun 365nm 60W



Specification

1. Model NO.: yoyo-uvgun365-60W
2. Brand: yoyo-uv
3. Products Type: Hand Lamp
4. Light source: High power UV led
5. Power:60W
6. Charging Voltage:AC100-240V 50-60Hz
7. Battery Type: Li-ion
8. Battery Voltage:21V
9. Current:2.85A
10. Irradiance area:40*40mm
11. Irradiance:6000mW/CM2
12. Charging time:2.5H
13. Wavelength: 365nm
14. Battery Capacity:4000mA
15. Cooling Method: Fan
16. Lifespan:>20000hours
17. Size:230*145*50mm
18. Gross Weight:1.8KG
19. Warranty:2years
20. Operating temperature (°C):-10 °C to +40 °C

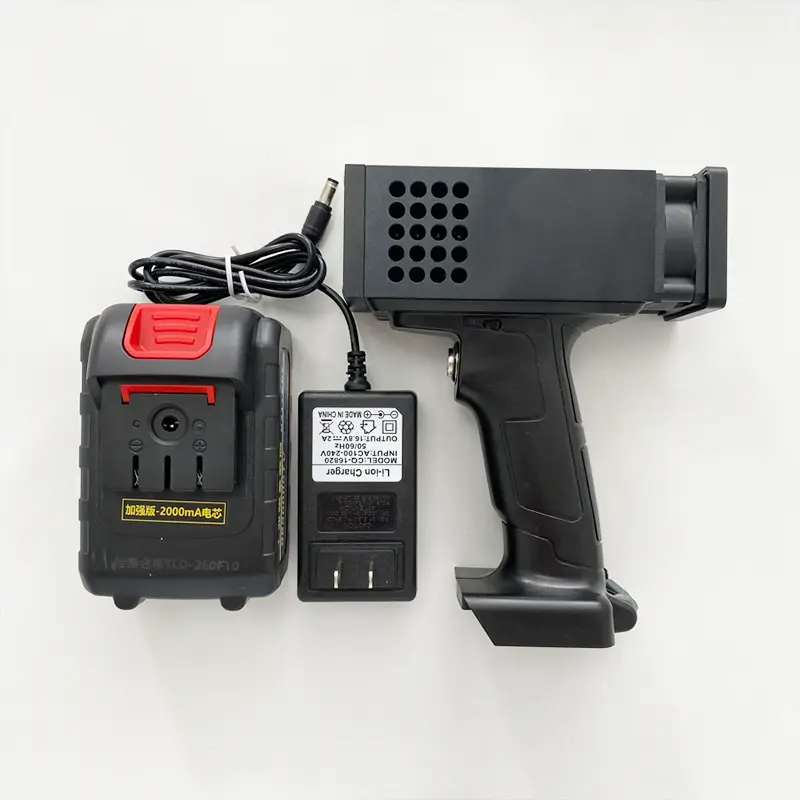

21. Package include:1*UV gun,1pc Charger,1pc battery

// Curing diameter at 56 cm: ø60cm

// Minimum Irradiance at 56 cm: 14mW/cm2

// Center Irradiance at 56 cm: 20mW/cm2



// Curing diameter at 10 cm: ø16cm

// Minimum Irradiance at 10 cm: 100mW/cm2

// Center Irradiance at 10 cm: 500mW/cm2



365nm UV Gun Applications

A 365nm UV-gun is a powerful inspection and curing tool designed to emit high-purity UVA light with minimal visible light interference. This wavelength is ideal for applications that require strong fluorescence response and precise UV activation.

In industrial settings, 365nm UV-guns are widely used for UV curing of adhesives, inks, resins, and coatings, helping manufacturers achieve fast curing speeds and improved production efficiency. They are also essential for non-destructive testing (NDT), where the UV-gun reveals cracks, leaks, or surface defects when used with fluorescent penetrants.

In quality inspection and maintenance, 365nm UV guns help detect oil leaks, coolant leaks, and contamination in automotive, aerospace, and HVAC systems. The strong fluorescence output makes hidden issues clearly visible. In forensic and security fields, these devices are used to identify counterfeit documents, invisible markings, and biological residues.

Additionally, 365nm UV-guns are popular in gemstone and mineral identification, as well as laboratory research requiring accurate UVA exposure. With their focused beam, high intensity, and portability, 365nm UV guns provide reliable performance for professional inspection, curing, and detection tasks across multiple industries.
